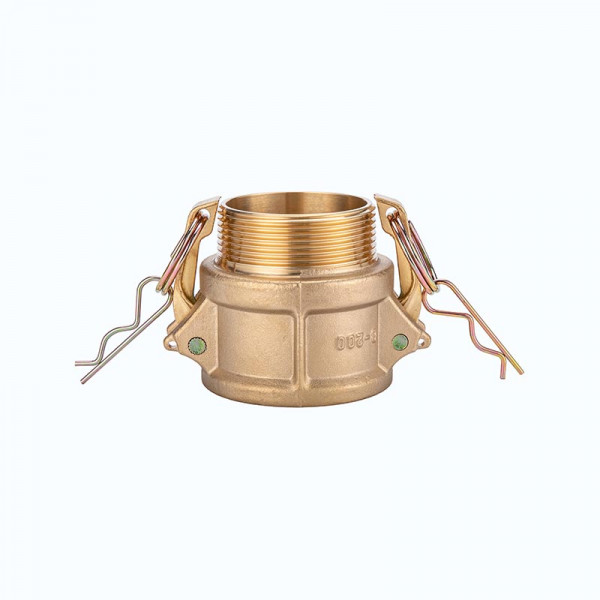

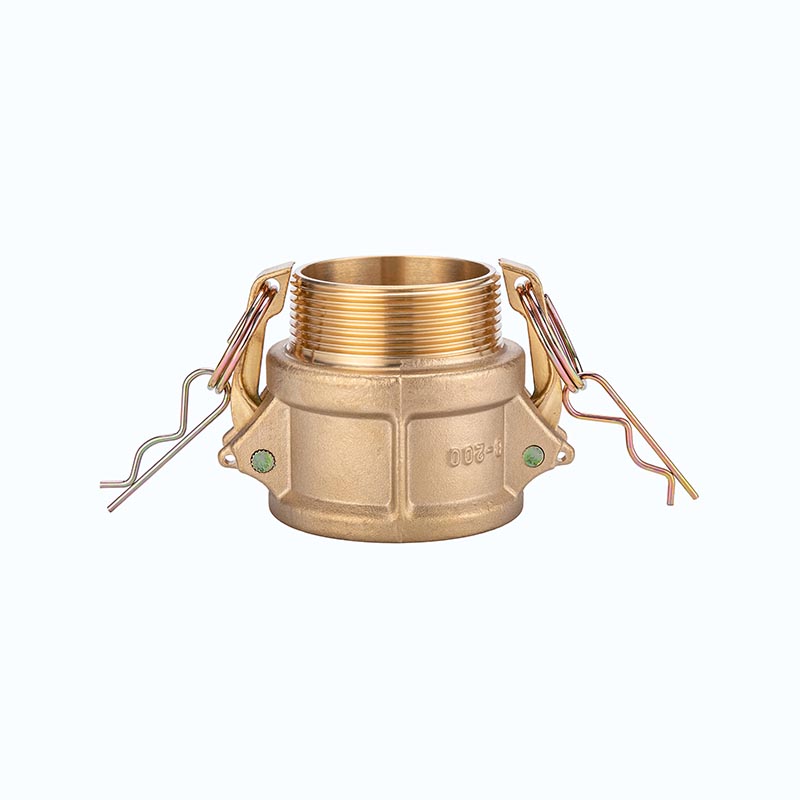

- Female Coupler With Male Thread
- Product Name: Type B
- Material: Brass
- Sizes:1/2″-6″
- MOQ: 50 PCS
- Customizable contents: sizes, logo
- Certificates: CE，ISO9001:2015
- Competitive price
- To learn more and get a quote, please leave your requirements on the form below.
- We’ll get back to you as soon as possible.
Brass camlock fitting Type B
Description
Introduction：
Brass cam and groove coupler &adapter made according to standard A-A-59326(original standard Mil-C-27487), size from 1/2″ to 6″.Camlock coupling provides a simple and reliable way to connect and disconnect hoses without any tools during installation. Brass camlock connects PVC hose, tubing, etc., It’s suitable for using in storage tanks, marine refueling systems, pumps, fuel tanks and other occasions. Brass camlock is a good choice, it has good corrosion resistance and long service life, convenient operation,which can save time, tools and manpower.
Description:
- Body materials: Brass
- handle: Brass
- Gaskets：Buna-N (NBR), EPDM
- The thread of camlock fittings are BSP,BSPT,NPT,G (ISO 228.1) and R (DIN2999).
- SIZE：1/2″to 6″
- Pressure :75-250 Psi( depending on size and temperature)
- Operating temperature :-40 to 145℃
- Manufacture method：Forging and casting
Cam and groove couplings use and connection mode: Type B camlock can usually be used with type A, type E, type F, type DP (Dust Plug) of the same size. To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
Feature：
- Convenience, interchangeability
- Good corrosion resistance
- Its special non-sparking feature
- longer service life
- Easily disconnect/connect without tools
Industry applications:
Industries: petroleum, mining, municipal, construction, marine refueling systems
Applications: hydraulic oil, coolant, gasoline and petroleum products, fuel delivery, water treatment, brine, wastewater
Operating pressure:
Size | Working Pressure |
1/2” – 2” | 250 Psi |
2-1/2” | 150 Psi |
3” | 125 psi |
4” | 100 psi |
5” – 6” | 75 psi |

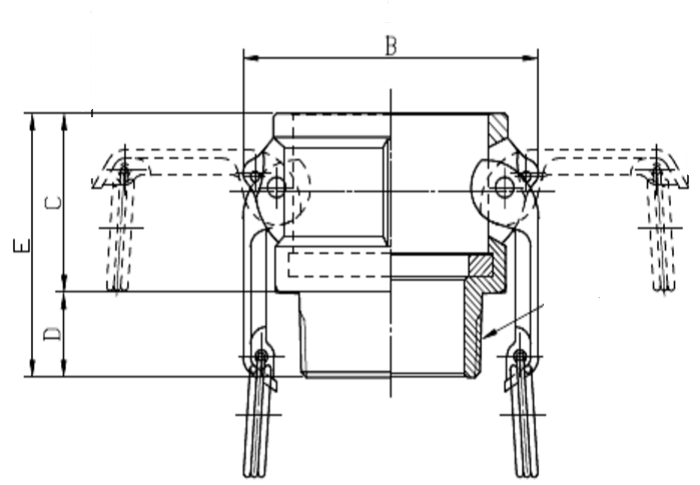

Size diagram：
Unit：mm
Part No | B | C | D | E |  |
050 | 45 | 31.5 | 16 | 47.5 | |
075 | 61.3 | 33.2 | 19 | 52.2 | |
100 | 68.2 | 40 | 19 | 59 | |
125 | 79.7 | 45.5 | 20 | 65.5 | |
150 | 87.4 | 46 | 23.5 | 69.5 | |
200 | 97 | 52.5 | 24.5 | 77 | |
250 | 109.5 | 55.5 | 29 | 84.5 | |
300 | 131.8 | 58 | 31.5 | 89.5 | |
400 | 159.9 | 59 | 33 | 92 | |
500 | 187.6 | 60 | 37 | 97 | |
600 | 240 | 62.8 | 41 | 103.8 |
