- Composite Hose Coupling Camlock
- Product Name: Type C
- Material: S/S & Aluminum
- Sizes:1″-4″
- MOQ: 50 PCS
- Customizable contents: sizes, logo
- Certificates: CE，ISO9001:2015
- Competitive price
- To learn more and get a quote, please leave your requirements on the form below.
- We’ll get back to you as soon as possible.

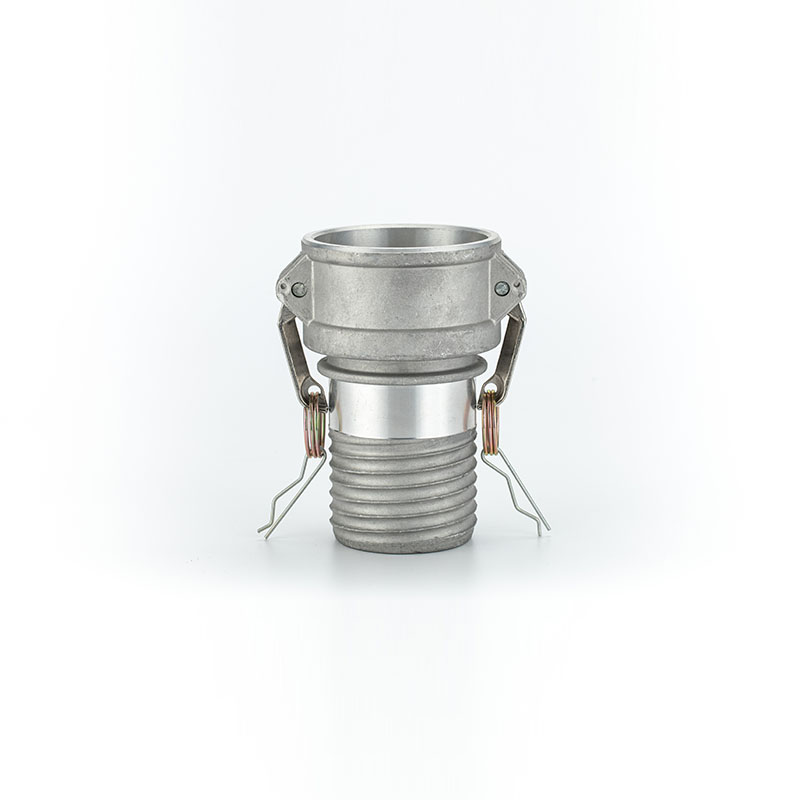

Composite Hose Coupling Type C
Description
Introduction:
camlock coupling female coupler Helico Type C
Type C – Spiral camlock with female coupler X Spiral hose shank
Type C – Spiral camlock are produced according to A-A-59236( Mil-C-2787) , Spirsl hose shank For Composite Hose Coupling, Spiral Camlock fittings provides a simple and reliable way to connect and disconnect hoses, which is more efficient and economical than threaded or flanged joints. Camlock fittings is suitable for transporting heavy oil, kerosene, water, hydraulic oil, oil and fuel, or acid and alkaline chemicals, with the advantages of quick connection and flexible disassembly.
- Body Material: Stainless Steel or Aluminum
- Arm: stainless steel
- Male Type thread : BSP, G(ISO228.1) and R(DIN2999).
- SIZE: 3/4” to 4”
- Working pressure: 50-250Psi(It depends on the size and temperature)
- Manufacture method: precision casting & gravity casting.
- Technics: Casting
Camlock fittings Feature:
- Light, flexible and interchangeable
- To connect and disconnect without tool
- Economical
The application of camlock fitting in variety industries.
- Industry: Oil, mine, municipal, construction, chemical and agriculture.
- Application: hydraulic oil, coolant, gasoline and petroleum products, fuel delivery, wastewater, chemical transportation and storage etc.
