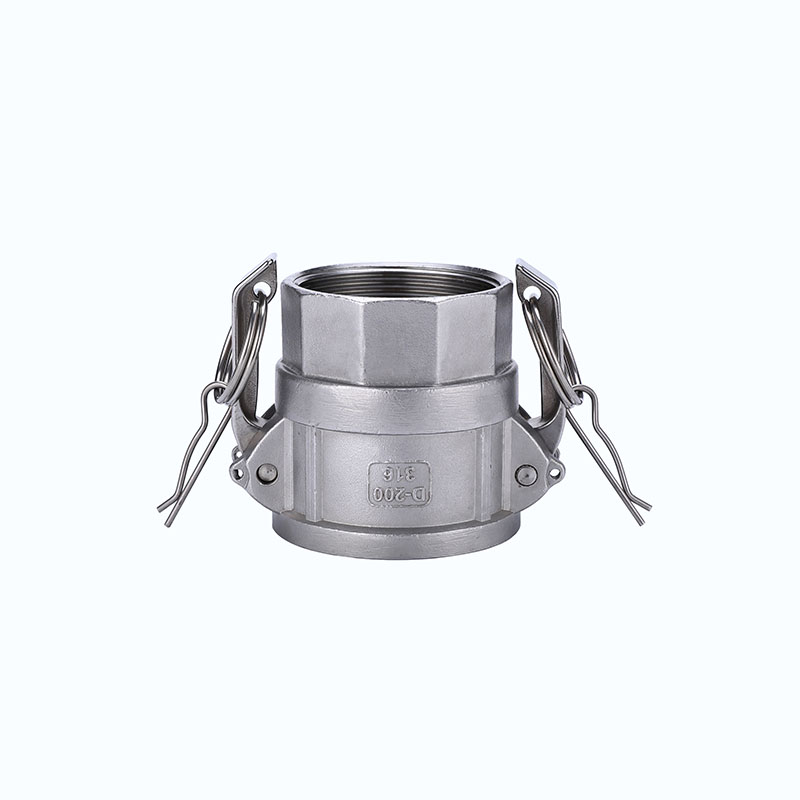

- Female Coupler With Female Thread
- Product Name: Type D
- Material: SS316 / SS304
- Sizes:1/2″-8″
- MOQ: 50 PCS
- Customizable contents: sizes, logo
- Certificates: CE，ISO9001:2015
- Competitive price
- To learn more and get a quote, please leave your requirements on the form below.
- We’ll get back to you as soon as possible.
SS camlock fitting Type D
Description
Introduction:
Stainless steel camlock fittings are produced according to standard A-A-59326(Mil-C-27487) or EN14420-7(DIN2828), also known as Cam &groove coupler &adapter co uplings, they are mainly composed of male adapter and female coupler. Camlock fittings are easy to install. During the process of installation,no tools are required and hand pressure is enough.Stainless steel quick hose couplings is the ideal choice for conveying oil, hydraulic oil, wastewater, chemicals, etc.
Description:
- Body material：Stainless steel 316or 340
- Handles &pins：Stainless steel
- Gaskets：Buna-N,EPDM,PTFE &food grade silicone gasket
- The thread of camlock fittings are BSP,BSPT,NPT,G (ISO 228.1) and R (DIN2999).
- Size：1/2″to 8″
- Working pressure :50-250 Psi( depending on size and temperature)
- Manufacture method：precision casting
The use and connection way of camlock fittings: Stainless steel camlock Coupler Type D can usually be used with E type, F type, DP(Dust Plug) type. To make a connection,simply slide the camlock adapter into the camlock coupling and with normal hand pressure,press the cam levers down.
Feature：
- Good corrosion resistance, wear resistance, high temperature stability
- Convenience, interchangeability
- Easily disconnect/connect without tools
Industry applications:
- Petroleum, mining, municipal, construction, chemicals, agriculture
- Hydraulic fluids, coolant, gasoline and petroleum products, fuel transport, irrigation, water treatment, seawater, wastewater, chemicals transport and storage.
Stainless steel camlock fittings operating pressure:
Size | Working Pressure |
1/2” | 150 Psi |
3/4”-2” | 250 Psi |
2-1/2” | 225 Psi |
3” | 200 Psi |
4” | 150 Psi |
5”-6” | 75 Psi |
Stainless steel camlock fittings ：

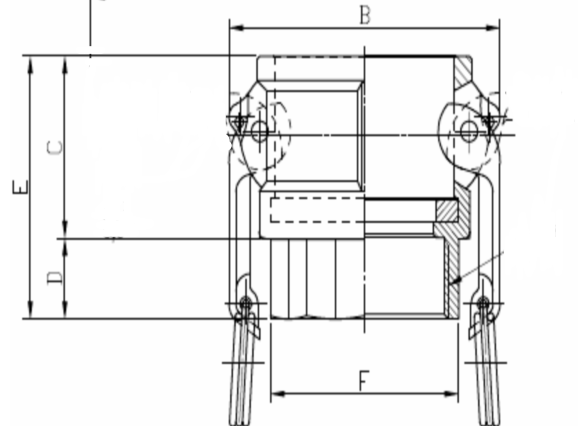

Unit：mm
Part No | B | C | D | E | F |  |
050 | 45 | 31.5 | 16 | 47.5 | 27 | |
075 | 61.3 | 33.2 | 19 | 52.2 | 32.4 | |
100 | 68.2 | 39.9 | 19.1 | 59 | 38.5 | |
125 | 79.7 | 45.5 | 22 | 67.5 | 48.5 | |
150 | 87.4 | 46 | 23.5 | 69.5 | 56 | |
200 | 97 | 52.5 | 23.5 | 76 | 66 | |
250 | 109.5 | 55.5 | 29 | 84.5 | 81.2 | |
300 | 131.8 | 58 | 31.5 | 89.5 | 96 | |
400 | 159.9 | 59 | 33 | 92 | 122.5 | |
500 | 187.6 | 60 | 36 | 96 | 152 | |
600 | 240 | 62.8 | 37 | 99.8 | 181 |
