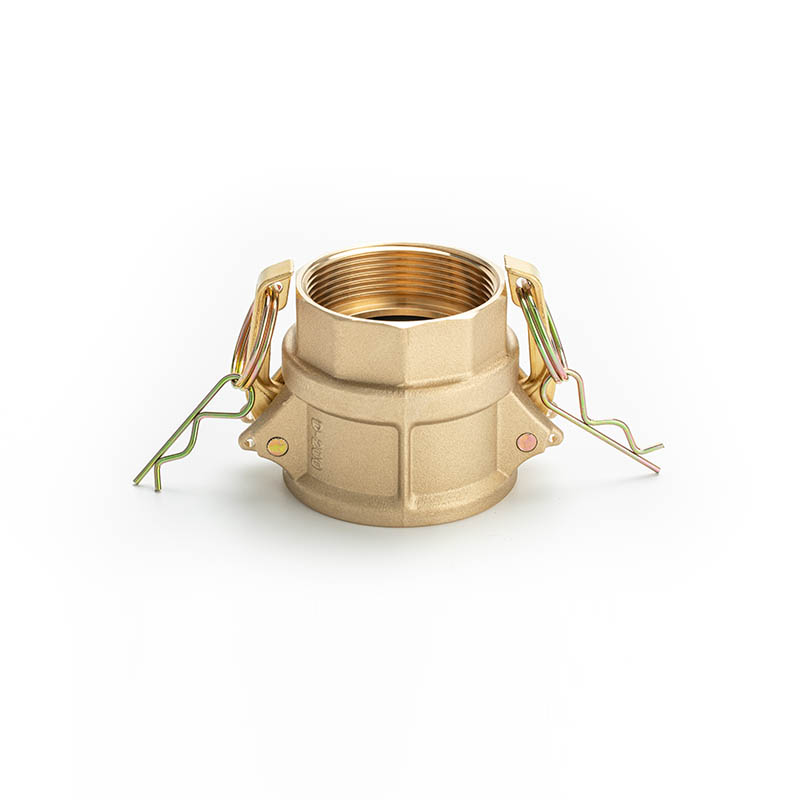

- Female Coupler With Female Thread
- Product Name: Type D
- Material: Brass
- Sizes:1/2″-6″
- MOQ: 50 PCS
- Customizable contents: sizes, logo
- Certificates: CE，ISO9001:2015
- Competitive price
- To learn more and get a quote, please leave your requirements on the form below.
- We’ll get back to you as soon as possible.
Brass camlock fitting Type D
Description
Introduction：
Brass cam and groove coupler &adapter made according to standard A-A-59326(original standard Mil-C-27487), size from 1/2″ to 8″.The 3/4″-6″ between manufacturers is interchangeable, while 1/2″,5″ and 8″ are not necessarily interchangeable because they are not standard dimensions.Camlock couplings make it easy and easy to extend / disconnect the hose from the tank, tank and equipment. In storage tank, marine refueling system, pump, oil tank and other occasions, brass cam lock is a good choice, it has good corrosion resistance and long service life, convenient operation, and it can save time, tools and manpower.
Description:
- Body materials: Brass
- Handle: Brass
- Gaskets：Buna-N (NBR), EPDM
- The thread of camlock fittings are BSP,BSPT,NPT,G (ISO 228.1) and R (DIN2999).
- SIZE：1/2″to 6″
- Pressure :75-250 Psi( depending on size and temperature)
- Operating temperature :-40 to 145℃
- Manufacture method：Forging and casting
The use and connection way of cam and groove couplings: Type D camlock can usually be used with type A, type E, type F, type DP (Dust Plug) of the same size. To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
Feature：
- Convenience, interchangeability
- good corrosion resistance
- non-sparking characteristics
- longer service life
- Easily disconnect/connect without tools
Industry applications:
Industries: petroleum, mining, municipal, construction, marine refueling systems
Applications: hydraulic oil, coolant, gasoline and petroleum products, fuel delivery, water treatment, brine, wastewater
Operating pressure:
Size | Working Pressure |
1/2” – 2” | 250 Psi |
2-1/2” | 150 Psi |
3” | 125 psi |
4” | 100 psi |
5” – 6” | 75 psi |

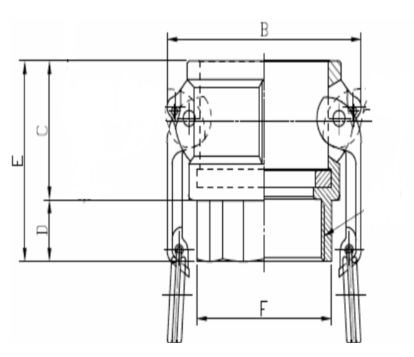

Size diagram：
Unit：mm
Part No | B | C | D | E | F |  |
050 | 45 | 31.5 | 16 | 47.5 | 27 | |
075 | 61.3 | 33.2 | 19 | 52.2 | 32.4 | |
100 | 68.2 | 39.9 | 19.1 | 59 | 38.5 | |
125 | 79.7 | 45.5 | 22 | 67.5 | 48.5 | |
150 | 87.4 | 46 | 23.5 | 69.5 | 56 | |
200 | 97 | 52.5 | 23.5 | 76 | 66 | |
250 | 109.5 | 55.5 | 29 | 84.5 | 81.2 | |
300 | 131.8 | 58 | 31.5 | 89.5 | 96 | |
400 | 159.9 | 59 | 33 | 92 | 122.5 | |
500 | 187.6 | 60 | 36 | 96 | 152 | |
600 | 240 | 62.8 | 37 | 99.8 | 181 |
