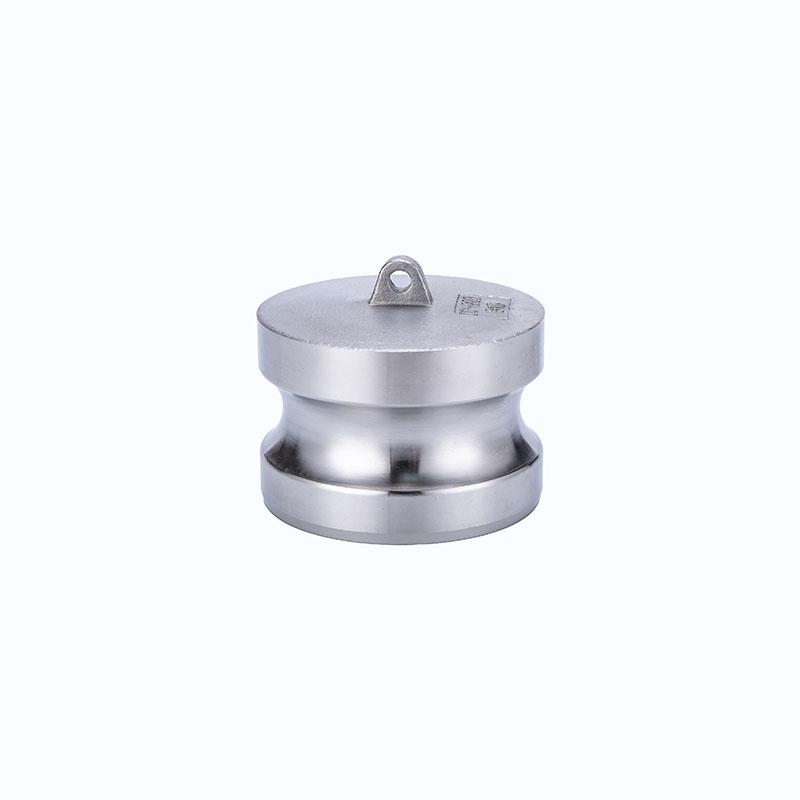

- Male Adapter Dust Plug
- Product Name: Type DP
- Material: SS316 / SS304
- Sizes:1/2″-8″
- MOQ: 50 PCS
- Customizable contents: sizes, logo
- Certificates: CE，ISO9001:2015
- Competitive price
- To learn more and get a quote, please leave your requirements on the form below.
- We’ll get back to you as soon as possible.
SS camlock fitting Type DP
Description
Introduction:
Stainless steel camlock couplings are produced according to standard A-A-59326(Mil-C-27487) or EN14420-7(DIN2828), also known as Cam &groove couplings, they are mainly composed of male adapter and female coupler. Camlock couplings is a kind of pipe joint which can be disassembled quickly without using tools.It has the advantages of light weight,convenience and interchangeability.It provides a simple and reliable method for connecting and disconnecting the hose.Stainless Steel Camlocks are best suited for acid,alkali,and corrosive substances.
Description:
- Body material：Stainless steel 316or 340
- Handles &pins：Stainless steel
- Gaskets：Buna-N,EPDM,PTFE &food grade silicone gasket
- The thread of camlock fittings are BSP,BSPT,NPT,G (ISO 228.1) and R (DIN2999).
- Size：1/2″to 8″
- Working pressure :50-250 Psi( depending on size and temperature)
- Service temperature：-40to 145℃(corresponding to gasket).
- Manufacture method：precision casting
The use and connection way of cam and groove couplings: Type DP camlock can usually be used with C, D, and Type B. To make a connection,simply slide the camlock adapter into the camlock coupling and with normal hand pressure,press the cam levers down.
Feature：
- Good corrosion resistance
- Convenience, interchangeability
- Easily disconnect/connect without tools
Industry applications:
- Petroleum, mining, municipal, construction, chemicals, agriculture
- Hydraulic fluids, coolant, gasoline and petroleum products, fuel transport, irrigation, water treatment, seawater, wastewater, chemicals transport and storage.
Stainless steel camlock fittings operating pressure:
Size | Working Pressure |
1/2” | 150 Psi |
3/4”-2” | 250 Psi |
2-1/2” | 225 Psi |
3” | 200 Psi |
4” | 150 Psi |
5”-6” | 75 Psi |

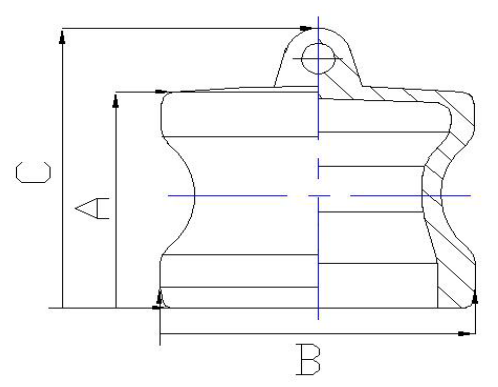

Stainless steel camlock coupling：
Unit:mm
Part No | A | B | C |  |
050 | 27.5 | 24.4 | 35.5 | |
075 | 26 | 32 | 38 | |
100 | 34.8 | 36.6 | 52.3 | |
125 | 40 | 45.4 | 57.5 | |
150 | 41 | 53.4 | 57 | |
200 | 56 | 63 | 63.5 | |
250 | 50 | 75.7 | 67.5 | |
300 | 50 | 91.4 | 67.5 | |
400 | 50.8 | 119.5 | 69.8 | |
500 | 53 | 145.2 | 78 | |
600 | 61.3 | 1`75.8 | 89.3 |
