- Male Adapter With Hose shank
- Product Name: Type E
- Material: Brass
- Sizes:1/2″-6″
- MOQ: 50 PCS
- Customizable contents: sizes, logo
- Certificates: CE,ISO9001:2015
- Competitive price
- To learn more and get a quote, please leave your requirements on the form below.
- We’ll get back to you as soon as possible.

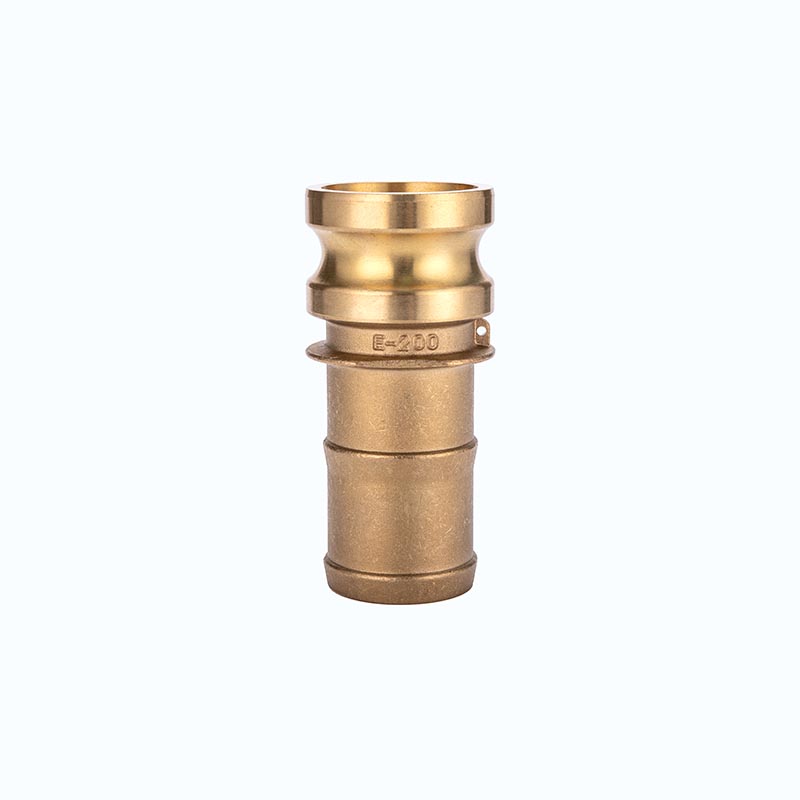

Brass camlock fitting Type E
Description
Introduction:
Brass cam and groove coupler &adapter made according to standard A-A-59326(original standard Mil-C-27487), size from 1/2″ to 8″. 3/4″-6″ between manufacturers is interchangeable, and 1/2″,5″ and 8″ because it is not the size specified in the standard, so 1/2″,5″ and 8″ between manufacturers are not necessarily interchangeable. Camlock couplings can save your time to extend/disconnect the hose and connect to the tank, tank, pump and elsewhere. Brass camlock is suitable for conveying fuel, water, coolant, hydraulic oil, gasoline and petroleum products. But not suitable for conveying steam and compressed air steam.
Description:
- Body materials: Brass
- Handle: Brass
- Gaskets:Buna-N (NBR), EPDM
- The thread of camlock fittings are BSP,BSPT,NPT,G (ISO 228.1) and R (DIN2999).
- SIZE:1/2″to 6″
- Pressure :75-250 Psi( depending on size and temperature)
- Operating temperature :-40 to 145℃
- Manufacture method:Forging and casting
The use and connection way of cam and groove couplings: Type E camlock can usually be used with type D, type C, type B, type DC (Dust Cap) of the same size. To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
Feature:
- Convenience, interchangeability
- good corrosion resistance
- non-sparking characteristics
- longer service life
- Easily disconnect/connect without tools
Industry applications:
Industries: petroleum, mining, municipal, construction, marine refueling systems
Applications: hydraulic oil, coolant, gasoline and petroleum products, fuel delivery, water treatment, brine, wastewater
Operating pressure:
Size | Working Pressure |
1/2” – 2” | 250 Psi |
2-1/2” | 150 Psi |
3” | 125 psi |
4” | 100 psi |
5” – 6” | 75 psi |

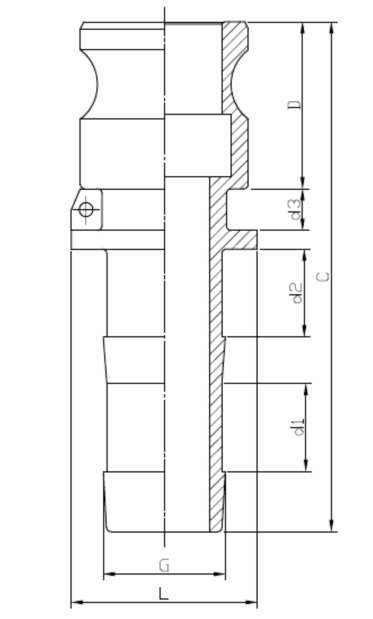

Size diagram:
Unit:mm
Part No | C | D | d1 | d2 | d3 | G | L | |
050 | 72.4 | 26 | 12 | 11 | 2.3 | 14.2 | 24.5 | |
075 | 85.3 | 26 | 17.5 | 17.6 | 8 | 21.5 | 34 | |
100 | 100.8 | 33.8 | 18 | 18 | 8.5 | 27.4 | 42 | |
125 | 109 | 39 | 20 | 18 | 9 | 34.1 | 48 | |
150 | 123.5 | 41 | 25 | 26.5 | 8 | 39.6 | 57.5 | |
200 | 142 | 46 | 31.5 | 31.5 | 10 | 52.4 | 66 | |
250 | 150.5 | 48 | 32 | 32.6 | 11.5 | 66.6 | 82 | |
300 | 157 | 50 | 35 | 31.6 | 11 | 77.8 | 91.5 | |
400 | 170.5 | 52.8 | 38 | 40 | 9.4 | 103.2 | 119.5 | |
500 | 206 | 53 | 40.2 | 63 | 15 | 129 | 148 | |
600 | 250.8 | 57.3 | 31.8 | 31.8 | 15 | 154 | 185 |
