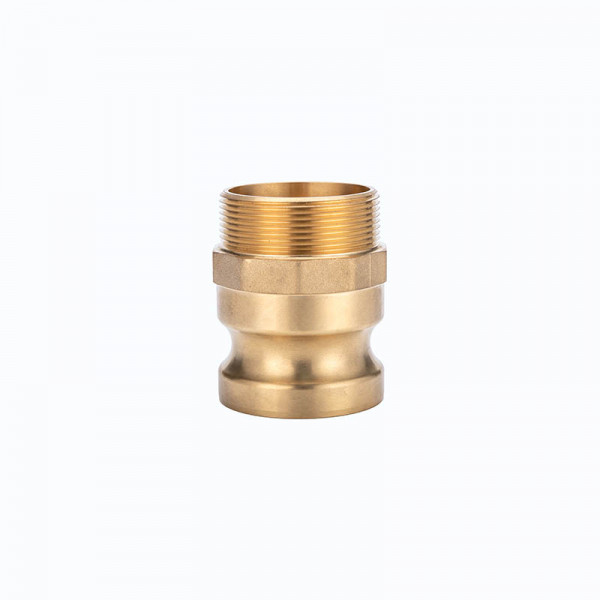

- Male Adapter With Male Thread
- Product Name: Type F
- Material: Brass
- Sizes:1/2″-6″
- MOQ: 50 PCS
- Customizable contents: sizes, logo
- Certificates: CE，ISO9001:2015
- Competitive price
- To learn more and get a quote, please leave your requirements on the form below.
- We’ll get back to you as soon as possible.

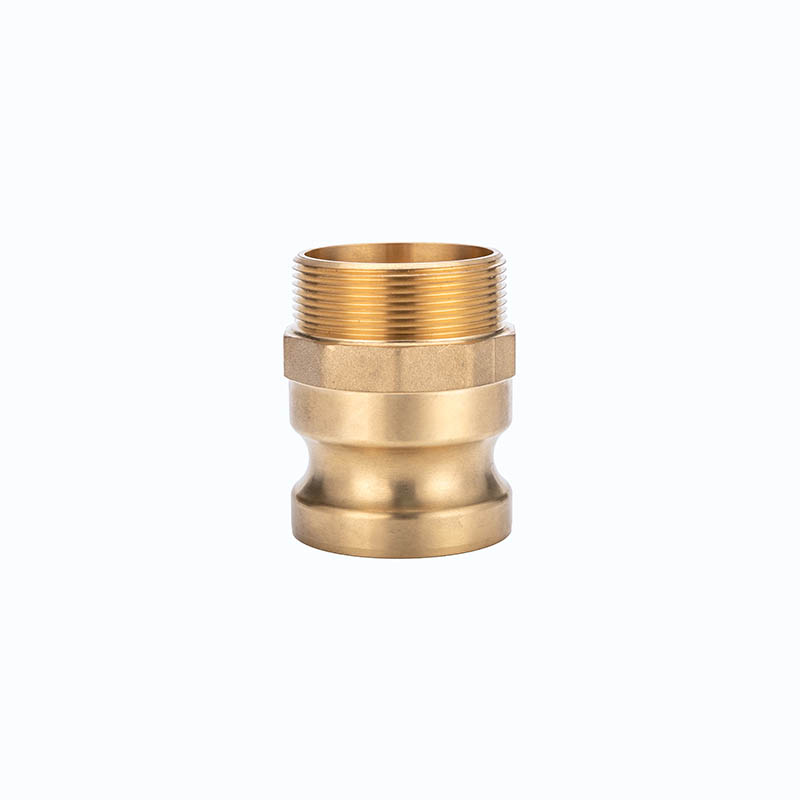

Brass camlock fitting Type F
Description
Introduction：
Brass cam and groove coupler &adapter are made according to standard A-A-59326(original standard Mil-C-27487), size from 1/2″ to 8″.3/4″-6″ between manufacturers is interchangeable, while 1/2″5″ and 8″ are not necessarily interchangeable because they are not standard dimensions. Brass camlock is suitable for conveying fuel, water, coolant, hydraulic oil, gasoline and petroleum products. But not suitable for conveying steam and compressed air steam.
Brass camlock couplings, though more expensive than polypropylene or nylon camlock couplings, is more durable and does not cause a sharp drop in pressure due to higher temperatures, Brass camlock couplings easier to thread.
Description:
- Body materials: Brass
- Handle: Brass
- Gaskets：Buna-N (NBR), EPDM
- The thread of camlock fittings are BSP,BSPT,NPT,G (ISO 228.1) and R (DIN2999).
- SIZE：1/2″to 6″
- Pressure :75-250 Psi( depending on size and temperature)
- Operating temperature :-40 to 145℃
- Manufacture method：Forging and casting
Cam and groove couplings use and connection mode: Type F camlock can usually be used with type D, type C, type B, type DC (Dust Cap) of the same size. To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
Feature：
- Convenience, interchangeability
- good corrosion resistance
- non-sparking characteristics
- longer service life
- Easily disconnect/connect without tools
Industry applications:
Industries: petroleum, mining, municipal, construction, marine refueling systems
Applications: hydraulic oil, coolant, gasoline and petroleum products, fuel delivery, water treatment, brine, wastewater
Operating pressure:
Size | Working Pressure |
1/2” – 2” | 250 Psi |
2-1/2” | 150 Psi |
3” | 125 psi |
4” | 100 psi |
5” – 6” | 75 psi |

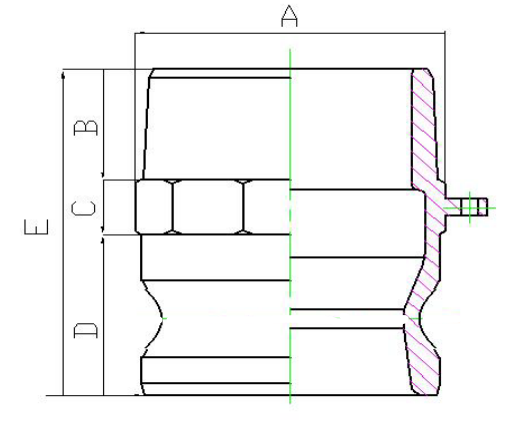

Size diagram：
Unit:mm
Part No | A | B | C | D | E |  |
050 | 26.6 | 17 | 10 | 26 | 53 | |
075 | 32.4 | 19 | 10 | 26 | 55 | |
100 | 38.5 | 19 | 14 | 34.8 | 67.8 | |
125 | 47 | 24 | 14 | 40 | 78 | |
150 | 56 | 22 | 13 | 41 | 76 | |
200 | 65 | 24.5 | 13 | 46 | 83.5 | |
250 | 80 | 29 | 18 | 50 | 97 | |
300 | 95 | 31.5 | 17 | 51 | 99.5 | |
400 | 122.5 | 33 | 19 | 53.8 | 105.8 | |
500 | 150 | 37 | 22.5 | 57 | 112.5 | |
600 | 181 | 40.5 | 22.5 | 57.3 | 120.3 |
